Metal Vacuum Tube Test Socket 01, 02

$15.00
Model Number: VTTS
Miniature 7-pin and 9-pin vacuum tube test socket adapters for chassis diagnostic testing.
Missing Option: Options
Loading Available Options
Maximum quantity exceeded
Minimum purchase amount of 1 is required
Maximum purchase amount of 4 is allowed
Your Price: $15.00
15.000
A one-time price of $15.00 will be added to your order.
2 Left in Stock
Maximum purchase amount of 4 is allowed
Categories: Vacuum Tubes and Accessories
Manufacturer: Multiple Manufacturers
Facebook
X
Email
Pinterest
  • Description
  • Specifications

These miniature vacuum tube test sockets allow technicians to measure voltage, current, and signal levels directly from tube pin connections during circuit testing. Designed for in-line troubleshooting, these adapters insert between the equipment chassis socket and the vacuum tube. Historically manufactured by test equipment vendors like Vector Electronic Company, Eby, and Cinch, these test sockets are available in standard 7-pin miniature and 9-pin noval configurations.

  • Function: In-Circuit Test Adapter / Diagnostic Socket Extension

  • Material: Phenolic / Bakelite Base with Metal Pin Extenders

  • Termination: Standard Solder Lug / Pin Access Terminals

  • Part Configurations:

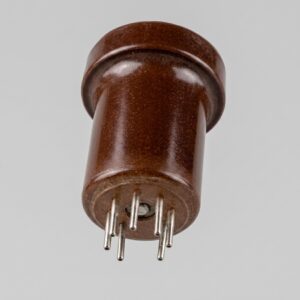

    • Part # 125655 (7-Pin B7G Base): 7 thin pins arranged in a 3/4 circle pattern with a wider gap between pin 1 and pin 7 for keying. Fits tubes like 6AQ5, 6AV6, 6AU6, and 6X4.

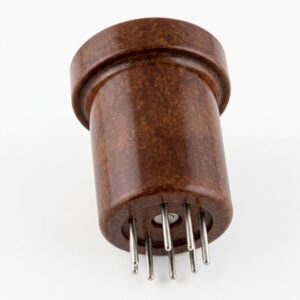

    • Part # 125516 (9-Pin B9A / Noval Base): 9 thin pins arranged in a 3/4 circle pattern with a wider gap between pin 1 and pin 9 for keying. Fits tubes like 12AX7, 12AU7, 6CG7, and 6BQ5.
